Optimization Daily: Logistic Regression and Gradient Descent in Python

One of the most simple machine learning problems is that of binary classification. Further, one of the most simple non-linear models is logistic regression. In short, this model takes a set of parameters and seeks a linear combination mapped to a non-linear sigmoid function which maximizes the likelihood of fitting the data. The math for this is below,

We will start with some libraries and the simple data set we will be working with for binary classification.

import numpy as np
import matplotlib.pyplot as plt

X,y = np.concatenate((np.random.randn(5000, 2), np.ones(5000).reshape(-1,1)), 1), np.random.binomial(1, 0.25, size=5000)
N, D = X.shape
X.shape, y.shape

Sigmoid

def sigmoid(z):
    return 1/(1 + np.exp(-z))
theta_init = np.random.randn(3)
theta_init

logits = sigmoid(X.dot(theta_init))
logits

def plot_logits(logits, title = "logits=sigmoid(X.dot(theta))"):
    plt.scatter(range(len(logits)), sorted(logits), label = "logits")
    plt.legend()
    plt.title(title)
    plt.show()

plt.clf()
plot_logits(logits)

Negative Log Likelihood

def negative_log_likelihood(logits, y):
    errors = y * np.log(logits) + (1-y)*np.log(1-logits)
    N = len(errors)
    return -(1/N) * np.sum(errors)

loss = negative_log_likelihood(logits, y)
loss

Finally, the gradient of the log likelihood. Notice that the gradient is always a vector.

Gradient Log Likelihood

def gradient_log_likelihood(X, logits, y):
    N, D = X.shape
    grad_vec = (1/N)*X.T.dot(logits-y)
    return grad_vec

gradient_log_likelihood(X, logits, y)

Gradient Descent

Now we want to optimize. so we will build a gradient descent function to loop through our training set and converge on a solution. We will also take a moment to visualize the logits.


def gradient_descent(f, grad_f, eps=0.01, eta=0.1, max_iter = 1000, **kwargs):
  theta_init = np.random.randn(D)
  thetas = [theta_init]
  losses = []
  for t in range(1,max_iter):
      logits = kwargs["h"](kwargs["X"].dot(thetas[-1]))

      loss = f(logits, kwargs["y"])
      losses.append(loss)


      #if t % 50 == 0:
      #    print("Loss {}".format(losses[-1]))
          #plot_logits(logits)
          #input("...")

      grad_vec = grad_f(kwargs["X"], logits, kwargs["y"])
      theta_t = thetas[t-1] - eta * grad_vec
      thetas.append(theta_t)

      if np.sqrt(np.sum(np.square(thetas[-2] - thetas[-1]))) <= eps:
        return thetas[-1], losses
        break

  return None


final_theta, losses = gradient_descent(negative_log_likelihood,
                                       gradient_log_likelihood,
                                       eps = 0.001,
                                       eta=0.01,
                                       max_iter = 100000,
                                       X=X,
                                       h=sigmoid,
                                       y=y)
logits = sigmoid(X.dot(final_theta))
plt.clf()
plot_logits(logits)

plt.clf()

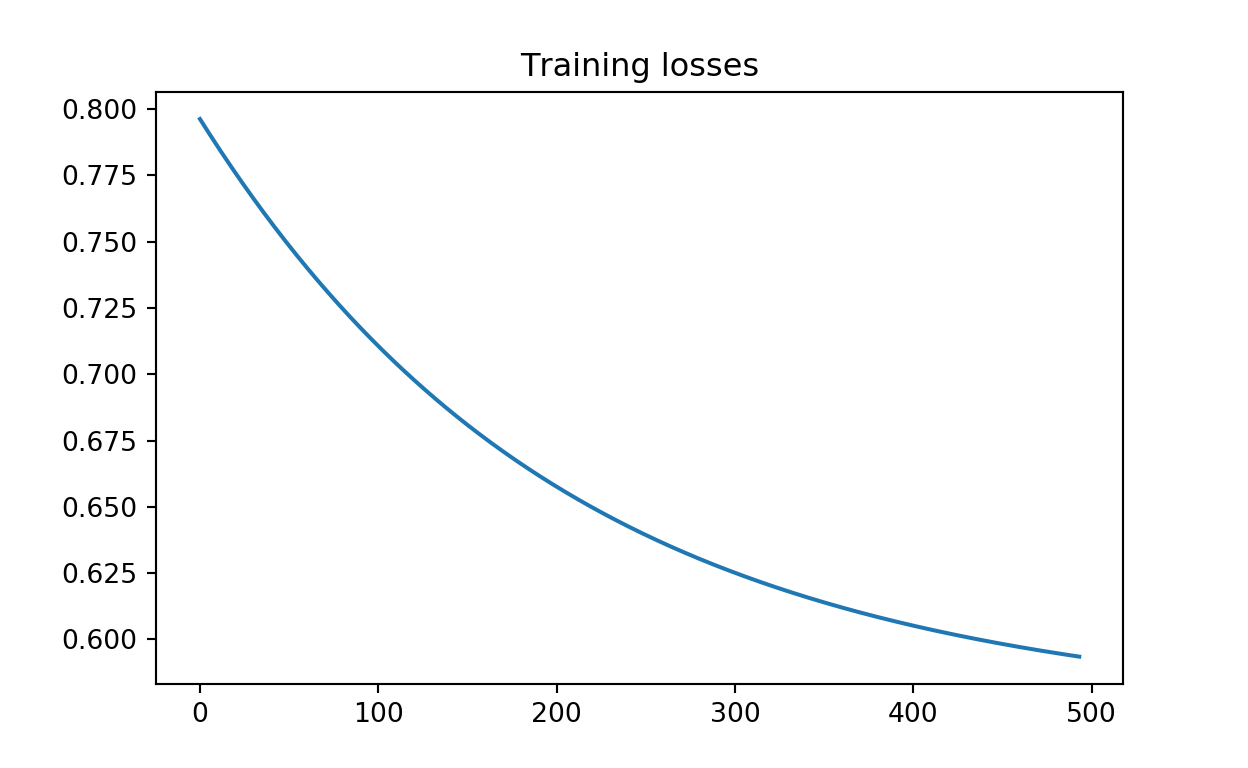

plt.plot(losses)
plt.title("Training losses")
plt.show()

Validation

The initial training accuracy with null parameters is below. 49% with a random guess on theta at the start.

def predict(logits, threshold = 0.5):
    return (logits > threshold).astype(int)

logits = sigmoid(X.dot(theta_init))
y_pred = predict(logits, threshold = 0.5)

print("Accuracy: {}".format(np.mean(y_pred == y)))

def predict(logits, threshold = 0.5):
    return (logits > threshold).astype(int)

logits = sigmoid(X.dot(final_theta))
y_pred = predict(logits, threshold = 0.5)

print("Accuracy: {}".format(np.mean(y_pred == y)))

Test Data

Let’s try this on some test data. We will just generate some more and see how we do! It looks like we get about the same percentage on new data, so that is a good indicator. We would expect this though, since they are sampled directly from the signal population. One good study might be to examine which data points are incorrect and where they fall on the logistic curve. Were they really low values or really high? Perhaps they were right on the decision boundary and just couldn’t decide. All these and others are good questions for a deep dive into model interpretation, which we will not get into now.

Xtest,ytest = np.concatenate((np.random.randn(5000, 2), np.ones(5000).reshape(-1,1)), 1), np.random.binomial(1, 0.25, size=5000)

logits = sigmoid(Xtest.dot(final_theta))
y_pred = predict(logits, threshold = 0.5)

print("Test Accuracy: {}".format(np.mean(y_pred == ytest)))

Optimal Decision Boundary

Right now the decision boundary is 0.5 which is customary in the machine learning and statistical community. We will explore what cutoff might be optimal by doing a random search through a bunch of possibilities from 0 to 1. The decision boundary that eeked out some extra performance for us is at around 0.68, or for the other engineers in the room, about 0.7. This tells us that there is about a 70% likelihood of predicting a 0 class label and about 30% likelihood of predicting a 1. This is very interesting because our original data was sampled from a binomial distribution with a probability of success as 25%. So the model, without being told, trained on a random parameter vector, after applying gradient descent, and through a bit of search optimization, was able to arrive at an estimate on the population’s yes prediction likelihood. Optimization is pretty amazing!

def optimize_decision_boundary(logits, y, plot = False):
    results = []
    thresholds = []
    for thresh in np.linspace(0, 1, 20):
        y_pred = predict(logits, threshold = thresh)
        results.append(np.mean(y_pred == y))
        thresholds.append(thresh)
    thresh_star = np.argmax(results)

    if plot:
        plt.plot(results)
        plt.suptitle("Decision Boundary Threshold Discovery")
        plt.title("Best Accuracy {} at index {} with value {}".format(results[thresh_star], thresh_star, np.round(thresholds[thresh_star], 4)))
        plt.axvline(x = thresh_star, c='r')
        plt.axhline(y = results[thresh_star], c='r')
        plt.show()

    return thresh_star, thresholds[thresh_star]

plt.clf()
threshold = optimize_decision_boundary(logits, y, plot=True)

threshold
