Movie Reviews

This problem is a binary classification problem. So we have a text-based data set and a binary response variable.

library(keras)
library(dplyr)
library(ggplot2)
library(purrr)

path <- "C:/Users/blake/Desktop/blog_data/movie_review.csv"

df <- readr::read_csv(path)
df %>% dplyr::glimpse()

Rows: 64,720
Columns: 6
$ fold_id <dbl> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0~
$ cv_tag  <chr> "cv000", "cv000", "cv000", "cv000", "cv000", "cv000"~
$ html_id <chr> "29590", "29590", "29590", "29590", "29590", "29590"~
$ sent_id <dbl> 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15~
$ text    <chr> "films adapted from comic books have had plenty of s~
$ tag     <chr> "pos", "pos", "pos", "pos", "pos", "pos", "pos", "po~

Data Landscape

The data appears to have over 60,000 rows, each containing a movie review in the text column with a response in the tag column for pos or neg (of the review).

# The spread on the response looks pretty even
df %>% dplyr::count(tag)

# A tibble: 2 x 2
  tag       n
  <chr> <int>
1 neg   31783
2 pos   32937

df$text[1]

[1] "films adapted from comic books have had plenty of success , whether they're about superheroes ( batman , superman , spawn ) , or geared toward kids ( casper ) or the arthouse crowd ( ghost world ) , but there's never really been a comic book like from hell before ."

training_id <- sample(nrow(df), size = nrow(df)*.8)
training <- df[training_id,]
testing <- df[-training_id,]

It might be useful to know the number of words in each review.

Sentence Length Visualization

df$text %>%
  strsplit(., " ") %>%
  sapply(., length) %>%
  head(10)

 [1] 52 36 27 30 13 27 52 16 37 36

  # hist(main = "Distribution of Words Per Sentiment", xlab = "Number of Words")

We will make the text a tensor. The most common 10,000 words will be specified by an integer. Every sequence will be represented by a sequence of integers.

Vectorizer

# total words to account ids for, otherwise drop - this becomes the [UNK] token to represent unknown characters.
num_words <- 10000

# per sequence, how many words to keep, or pad to
max_length <- 50

# Fit the parameters into the vectorizer
text_vectorization <- keras::layer_text_vectorization(
  max_tokens = num_words,
  output_sequence_length = max_length
)

Adapt

Next we will adapt the Text Vectorization. Once we adapt the layer will learn unique words in our dataset and assign integer values for each.

# Now it knows the vocab of 10,000
# Each will become a size 50 vector, of shape Nx50 now.

text_vectorization %>%
  adapt(df$text)

# Notice they are all tokeninzed and lower cased nice and neat.
get_vocabulary(text_vectorization)[1:100]

  [1] ""           "[UNK]"      "the"        "a"          "and"
  [6] "of"         "to"         "is"         "in"         "that"
 [11] "it"         "as"         "with"       "for"        "his"
 [16] "this"       "film"       "but"        "he"         "i"
 [21] "on"         "are"        "by"         "be"         "its"
 [26] "an"         "not"        "one"        "movie"      "who"
 [31] "from"       "at"         "was"        "have"       "has"
 [36] "her"        "you"        "they"       "all"        "so"
 [41] "like"       "about"      "out"        "more"       "when"
 [46] "which"      "their"      "up"         "or"         "what"
 [51] "some"       "just"       "if"         "there"      "she"
 [56] "him"        "into"       "even"       "only"       "than"
 [61] "no"         "we"         "good"       "most"       "time"
 [66] "can"        "will"       "story"      "films"      "been"
 [71] "would"      "much"       "also"       "characters" "other"
 [76] "get"        "character"  "do"         "them"       "very"
 [81] "two"        "first"      "after"      "see"        "well"
 [86] "because"    "way"        "make"       "any"        "does"
 [91] "really"     "had"        "too"        "while"      "how"
 [96] "little"     "life"       "where"      "were"       "plot"

Sample Sentence

Lets convert one sample. Since tensorflow will only accept matrices, we will transform that sample into a matrix and pass it in. Out comes the 1x50 vector transformation.

# Lets convert one sample
x <- matrix(df$text[1], ncol=1)

# Since tensorflow will ONLY accept matrices, we have to make it a fat 1x1 matrix and throw it in. Out comes a 1x50
text_vectorization(x)

tf.Tensor(
[[  68 2835   30  359 1662   33   91 1056    5  632  631  321   41 7803
   709 4865 1767   48 7600 1337  398 5161   48    2    1 1808 1800  148
    17  140  109   90   69    3  359  408   40   30  503  142    0    0
     0    0    0    0    0    0    0    0]], shape=(1, 50), dtype=int64)

# Out comes a 1x50. It looks to be rightside padded.

Build the Model

input <- layer_input(shape = c(1), dtype = "string")

output <- input %>%
  #custom layer, input text; output tensor
  text_vectorization() %>%
  # produce 16 new dimensions for each sentiment
  layer_embedding(input_dim = num_words, output_dim = 16) %>%
  # average over the new 16 dimensions
  layer_global_average_pooling_1d() %>%
  layer_dense(units = 16, activation = "relu") %>%
  layer_dropout(0.5) %>%
  layer_dense(units = 1, activation = "sigmoid")

model <- keras_model(input, output)

I politely steal this from the documentation,

“The first layer is an embedding layer. This layer takes the integer-encoded vocabulary and looks up the embedding vector for each word-index. These vectors are learned as the model trains. The vectors add a dimension to the output array. The resulting dimensions are: (batch, sequence, embedding).”

So the word embedding layerdoes indeed expand the dimensions for each word index. It learns these as it trains. Once complete, we can go back and pluck this layer out and go start to visualize words from our corpus against one another. Maybe we could perform the famous man - woman = king - queen example? More to follow.

“Next, a global_average_pooling_1d layer returns a fixed-length output vector for each example by averaging over the sequence dimension. This allows the model to handle input of variable length, in the simplest way possible.”

I gladly steal more excellent interpretation

” HIDDEN UNITS The above model has two intermediate or “hidden” layers, between the input and output. The number of outputs (units, nodes, or neurons) is the dimension of the representational space for the layer. In other words, the amount of freedom the network is allowed when learning an internal representation.

If a model has more hidden units (a higher-dimensional representation space), and/or more layers, then the network can learn more complex representations. However, it makes the network more computationally expensive and may lead to learning unwanted patterns — patterns that improve performance on training data but not on the test data. This is called overfitting, and we’ll explore it later”

Loss Function and Optimizer

model %>% compile(
  optimizer = 'adam',
  loss = 'binary_crossentropy',
  metrics = list("accuracy")
)

Train the model

history <- model %>% fit(
  x = training$text,
  y = as.numeric(training$tag == "pos"),
  epochs = 10,
  batch_size = 512,
  validation_split = 0.2,
  verbose = 2
)

Evaluate

evaluate(model, testing$text,
         as.numeric(testing$tag == "pos"),
         verbose = 0)

     loss  accuracy
0.5966193 0.6841007

This fairly naive approach achieves an accuracy of about 68%. With more advanced approaches, the model should get closer to 85%.

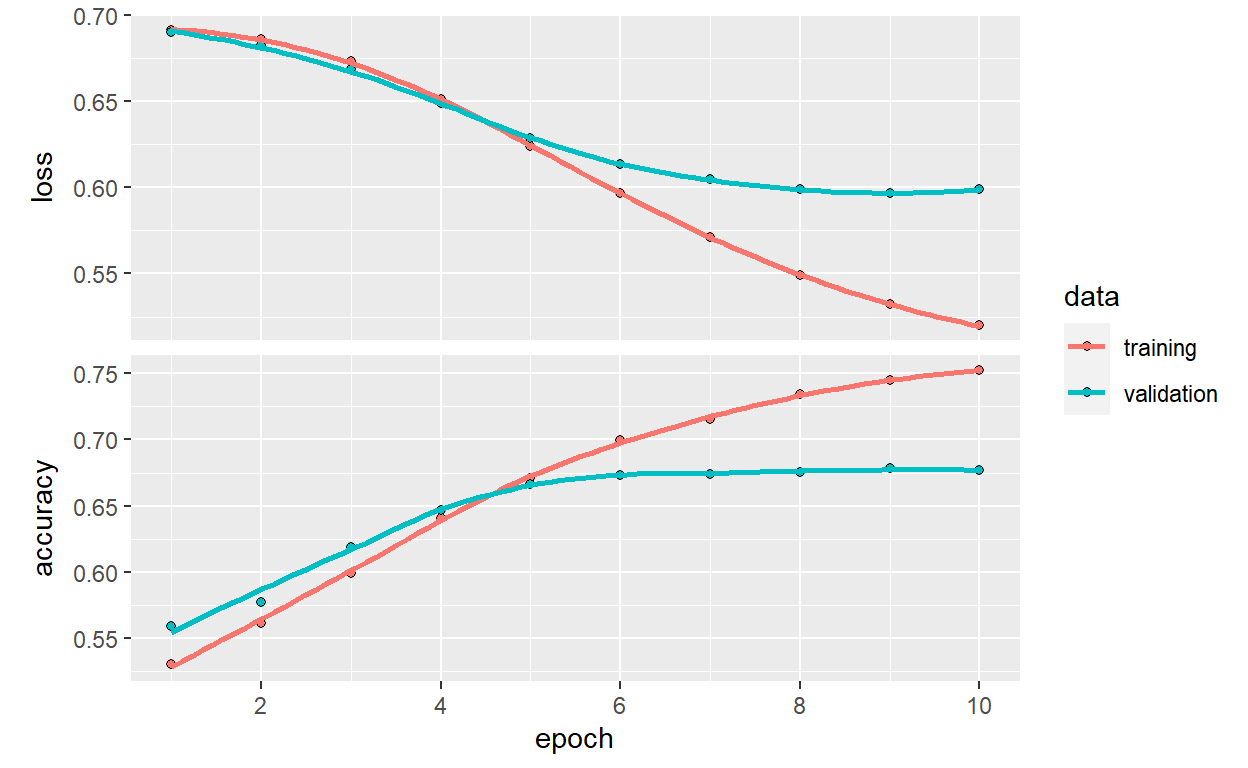

Plot Metrics

plot(history)

What’s in that layer?

That’s the magic question. Time to take a peak.

embeddings <- model$layers[[3]]

X <- embeddings$embeddings %>%
  as.matrix %>%
  as.data.frame %>%
  select(V1, V2, V3) %>%
  mutate(word = get_vocabulary(text_vectorization))

ggplot(data = X,
       aes(x=V1, y=V2, color = V3, label = word)) +
  geom_point() +
  geom_text() +
  theme_bw() +
  xlab("Embedding 1") +
  ylab("Embedding 2") +
  labs(color = "Embedding 3") +
  ggtitle("Word Embeddings", subtitle = "First Three Embeddings") +
  geom_vline(xintercept=min(X$V1), color="red") +
  geom_vline(xintercept=-0.01, color="red", linetype="dotted") +
  geom_vline(xintercept=max(X$V1), color="green") +
  geom_vline(xintercept=0.01, color="green", linetype="dotted")

# Maybe we can drill in
ggplot(data = X %>% filter(V1 < -0.4, V2 >-0.5),
       aes(x=V1, y=V2, color = V3, label = word)) +
  geom_point() +
  geom_text() +
  xlab("Embedding 1") +
  ylab("Embedding 2") +
  labs(color = "Embedding 3") +
  theme_bw()

Kind of amazing. Words such as …

Outstanding
Breathtaking
Fantastic
Guido (which is usually a term for awesome)
Damon (probably for Matt Damon, who is pretty awesome)

… are all in just this little region. We learned a lot in this little model. Let’s look at one more visual with just our first two dimensions of word embeddings without pca.

# What a treasure trove. For each word, we have a 16 dimensional representation it learned.
X <- embeddings$embeddings %>% as.matrix
dim(X)

[1] 10000    16

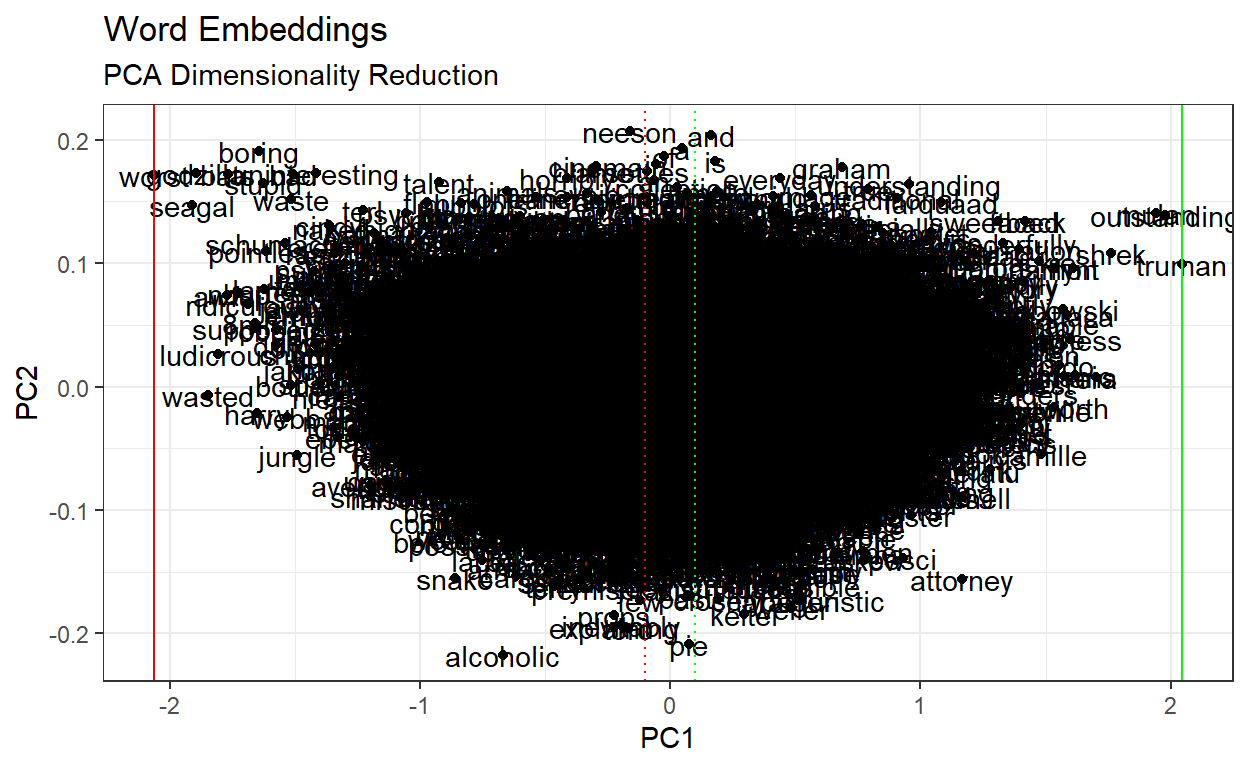

components <- prcomp(X)
PC <- components$x %>% as.data.frame %>% select(PC1, PC2)
PC <- PC %>% dplyr::mutate(word = get_vocabulary(text_vectorization))

ggplot(data = PC, aes(x=PC1, y=PC2, label = word)) +
  geom_point() +
  geom_text() +
  theme_bw() +
  ggtitle("Word Embeddings", subtitle = "PCA Dimensionality Reduction")+
  geom_vline(xintercept=min(PC$PC1), color="red") +
  geom_vline(xintercept=-0.1, color="red", linetype="dotted") +
  geom_vline(xintercept=max(PC$PC1), color="green") +
  geom_vline(xintercept=0.1, color="green", linetype="dotted")

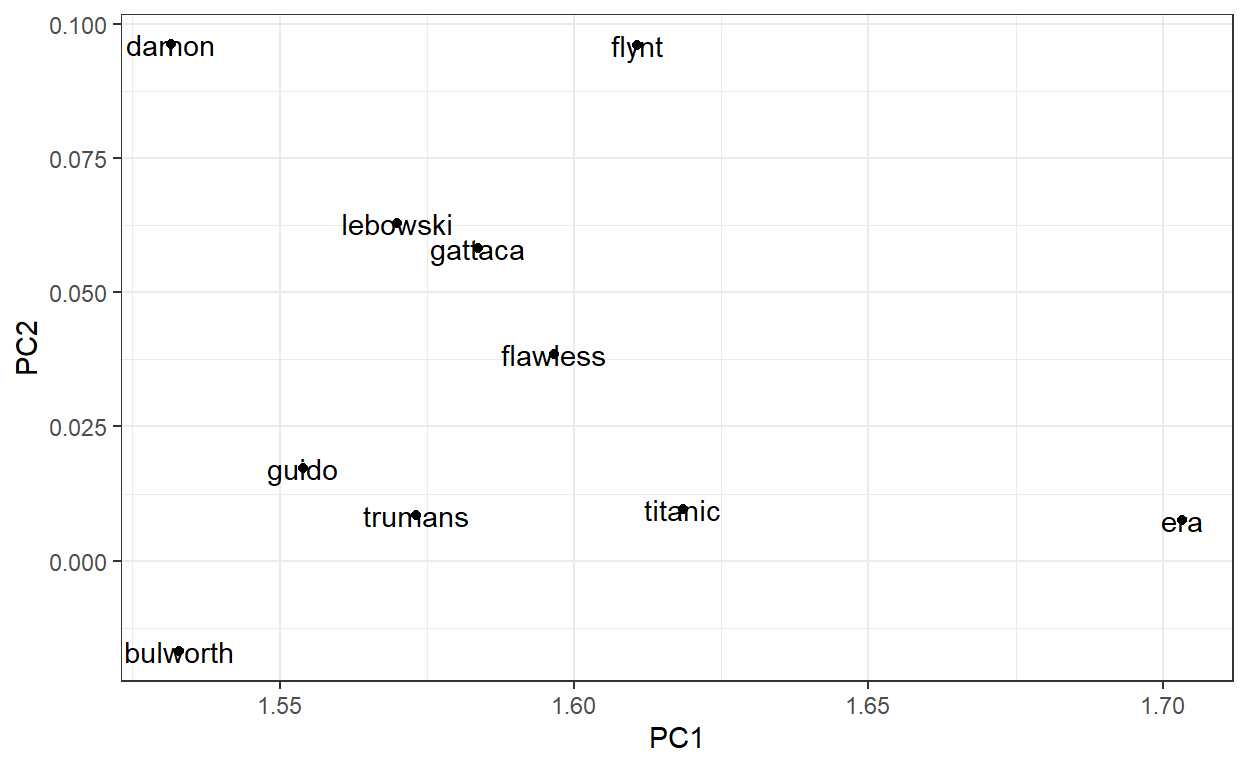

# What about those just in a certain region?
ggplot(data = PC %>% filter(PC1 < 2, PC1 > 1.5,
                            PC2 < 0.1, PC2 > -0.1),
       aes(x=PC1, y=PC2, label = word)) +
  geom_point() +
  geom_text() +
  theme_bw()

Pretty amazing, even just the first few layers of word embeddings show the same thing. Words like:

awful
waste
jawbreaker
rediculous
stupid
stupidity

Incredible. This language model has learned words from our custom domain.

One can only imagine that there are two populations of words because this domain was specifically trained on them.

Another exercise is to flow these files from the directory structure.

References

https://tensorflow.rstudio.com/tutorials/beginners/basic-ml/tutorial_basic_text_classification/

Text Classification with Keras in R
